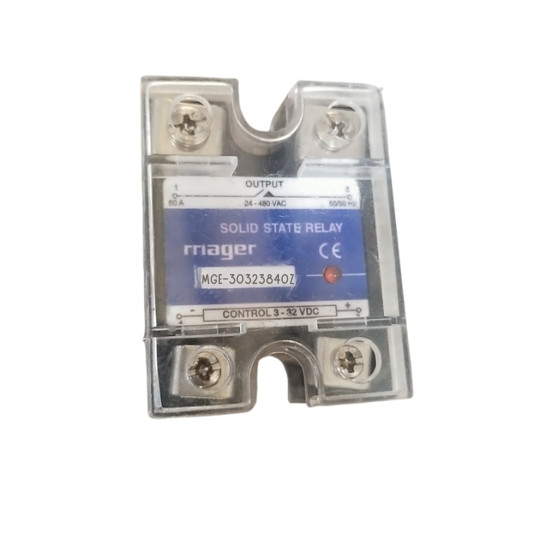

solid state relay mager MGE-30323840Z 40A [3-32V] DC

? Product OverviewThe Mager MGE-30323840Z is a high-performance, three-phase solid state relay (SSR) designed for industrial applications requiring reliable and fast switching of AC loads. With a DC control voltage range of 3–32V and a load capacity of up to 40A, this SSR is ideal for controlling heavy-duty equipment such as motors, heaters, and lighting systems. Its zero-crossing trigger control method ensures minimal electrical noise and extends the lifespan of connected devices.​UrukTech 4Mechblock 4robosavvy.co.uk 4⚙️ Key Specifications Input Control Voltage: 3–32V DC Trigger Current: ≤20mA Load Voltage Range: 24–480V AC (Three-phase) Load Current: 40A Control Type: Zero-crossing trigger Response Time: ON < 20ms / OFF < 40ms Dielectric Strength: Over 2.5kVAC for 1 minute Insulation Resistance: Over 50MΩ at 500V DC Operating Temperature Range: -20°C to 85°C Dimensions: 105mm × 74mm × 33mm Mounting: Panel mount with screw terminals Housing Material: High-strength ABS engineering plastic with a transparent protective cover​ABRA Electronics 2HUIMU electronics 2HUIMU electronics 2Futurlec 2UrukTech 2Mechblock 2FuturlecSparkFun Electronics 7HUIMU electronics 7HUIMU electronics 7 ? Features High Reliability: Utilizes TRIAC output components for consistent performance in demanding environments. Low Input Current: Efficient operation with minimal control current requirements. LED Indicator: Built-in LED displays output status for easy monitoring. Protective Circuitry: Standard RC snubber circuit included to suppress voltage spikes. Compact Design: Space-saving form factor suitable for various industrial control panels.​Chicago Electronic Distributors 6HUIMU electronics 6HUIMU electronics 6 ?️ Installation & Cooling Recommendations Heat Dissipation: For load currents exceeding 10A, it is recommended to use a heat sink. For currents above 40A, an air-cooled or water-cooled radiator should be installed to ensure optimal performance and longevity. Inductive Loads: When controlling inductive loads, connect a varistor in parallel with the output terminals. The varistor's voltage rating should be 1.6 to 1.9 times the load voltage to protect against voltage spikes.​HUIMU electronics ? Applications Industrial Automation: Control of motors, conveyors, and robotic systems. Heating Systems: Regulation of industrial heaters and ovens. Lighting Control: Management of large-scale lighting installations. HVAC Systems: Operation of fans, compressors, and pumps. Download
