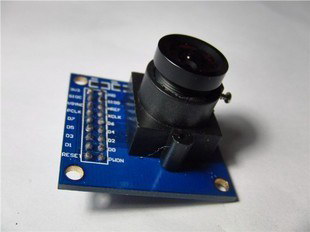

OV7670 Camera Module [FIFO]

Description Feature: Brand new and high quality. High sensitivity for low-light operation. Low operating voltage for embedded application. Standard SCCB interface compatible with I2C interface. Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2)output format. Support VGA, CIF and from CIF to 40 x 30 format. Vario Pixel method for sub-sampling. Auto Image Control: AEC, AGC, AWB, ABF, ABLC. Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming. ISP includes noise reduction and defect correction. Support image scaling. Lens shading correction. Flicker 50/60Hz auto detection. Color saturation level auto adjust. Edge enhancement level auto adjust. De-noise level auto adjust. Parameter: Photosensitive Array: 640 x 480. IO Voltage: 2.5V to 3.0V. Operating Power: 60mW/15fpsVGAYUV. Sleeping Mode: <20μA. Operating Temperature: -30 to 70 deg C. Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit). Lens Size: 1/6″. Vision Angle: 25 degree. Max. Frame Rate: 30fps VGA. Sensitivity: 1.3V / (Lux-sec). Signal to Noise Ratio: 46 dB. DynamicRange: 52 dB. Browse Mode: By row. Electronic Exposure: 1 to 510 row. Pixel Coverage: 3.6μm x 3.6μm. Duck Current: 12 mV/s at 60℃. PCB Size (L x W): Approx. 1.4 x 1.4 inch / 3.5 x 3.5 cm. FIFO: The one with FIFO has 3M extra cache, the data collected will store in this cache, so only need to read the image data from the cache, by doing this, the load of sampling image data for MCU can be reduced. FIFO cache chip can be found on the backside of the module Package: 1 x OV7670 Camera Module See all the documents at OV7670 Module page.
